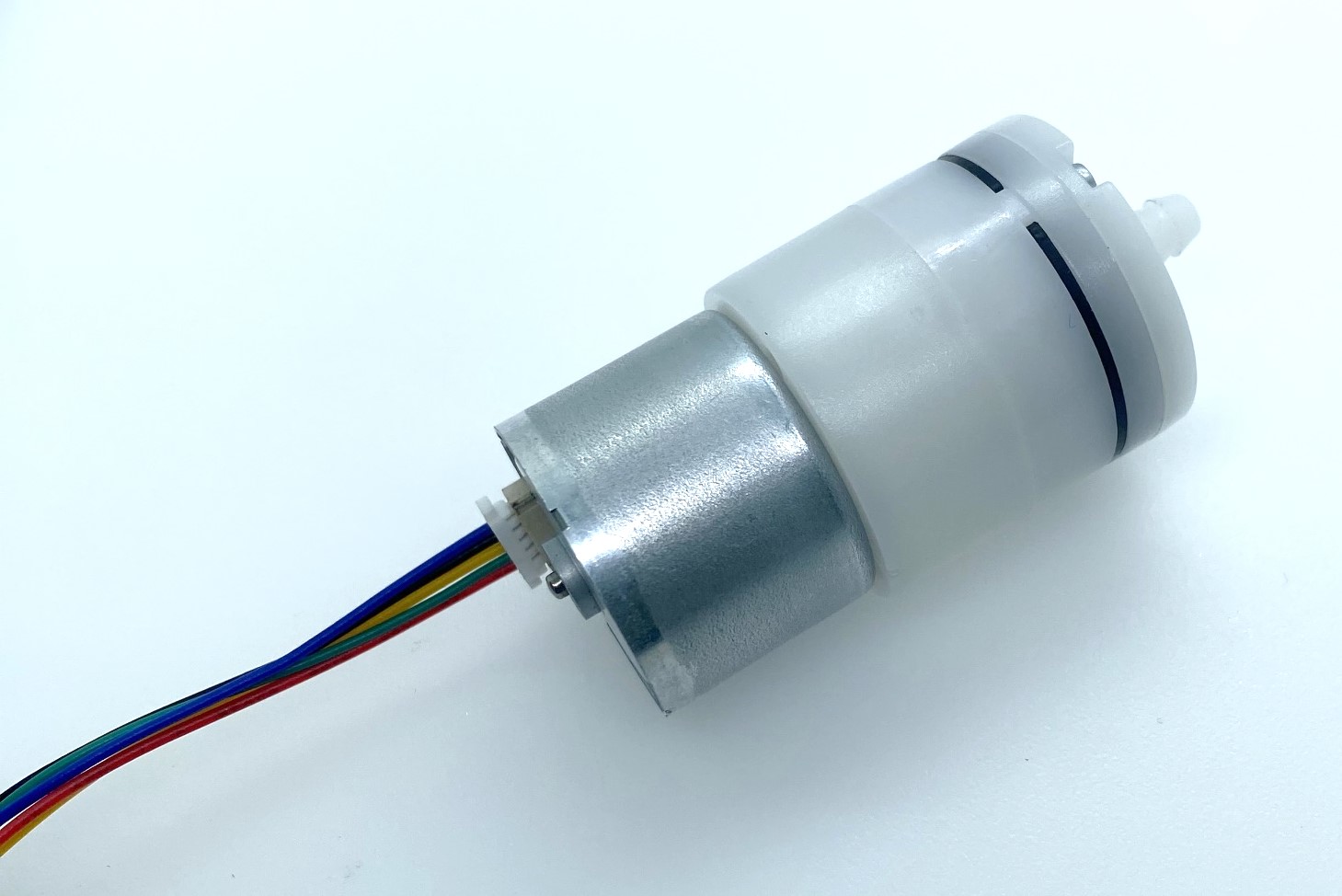

Air2418A brushless air pump
HBQB-2418-XA
A brushless POM air-pump platform for long-life fragrance, medical, and electronically controlled OEM programs.
- No-load flow
- 0.5-2.5 L/min
- Pressure
- ≥80 kPa
- Life test
- ≥3,000 h
Air pumps
HBQB-370-XA
A POM air-pump platform for fragrance and compact pneumatic products where chemical resistance is important.
No-load flow0.5-2.5 L/min
Pressure≥90 kPa
Life test≥1,000 h
Product role
370A corrosion-resistant air pump
A POM air-pump platform for fragrance and compact pneumatic products where chemical resistance is important.
POM plastic construction
Barbed outlet to help retain tubing
Catalog-described essential-oil chemical resistance
Catalogue specifications
Reference data for the listed configuration.
Rated current varies with voltage. Confirm the exact electrical configuration and the required performance at the working point before quotation.
- Rated voltage options
- 3 / 3.7 / 6 / 12 / 24 V DC
- Power
- 1.0-2.0 W
- Port OD
- Ø5.0 mm
- No-load air flow
- 0.5-2.5 L/min
- Maximum pressure
- ≥90 kPa
- Noise
- ≤50 dB at 30 cm
- Life test
- ≥1,000 h continuous
- Weight
- 60 g
Typical applications
Where this platform fits.
- Aroma diffusers and fragrance machines
- Household, medical, beauty, and massage equipment
- Compact pneumatic systems exposed to essential-oil vapors
Before sampling
What to confirm in your product.
- 01
Confirm the exact chemical exposure, concentration, and temperature.
- 02
Select against flow at working pressure, not no-load flow alone.
Related platforms
Compare another pumping principle or duty range.
The final shortlist should reflect the medium, working point, electrical limit, installation and expected life.
Air
LiquidN20 micro peristaltic pump
HBSB-N20-XA
A compact low-volume peristaltic platform with an isolated tube path and four-way adjustable inlet and outlet orientation.
- Flow
- 0.5-15 mL/min
- Voltage
- 3-6 V DC
- Life test
- ≥200,000 cycles or ≥120 h
LiquidCompact gear liquid pump
HBSB-CLB-XA
A gear-driven liquid platform intended for stable transfer of viscous personal-care and cleaning formulations.
- Flow
- 100-300 mL/min
- Voltage
- 3-12 V DC
- Media
- Viscous liquids
Discuss HBQB-370-XA
Request a sample or quotation for your operating condition.Include the application, medium, target flow, pressure or vacuum, voltage, duty cycle and estimated annual volume.
