01Isolated fluid path
Liquid · air · vacuum · peristaltic
Compact pumps.Engineered into your product.
Pump selection, samples and production support for international OEM teams building medical, appliance, beauty, beverage and industrial products.
Featured liquid platformHBSB-370-XB
0.5-1.5 L/min · ≥50 psi · 3-24 V DC
66catalog configurations
3-24 Vlow-voltage platforms
9product families
OEMsample to repeat supply
Product platforms
Choose by pumping principle and duty.
The catalogue covers 66 configurations across precision dosing, liquid transfer, air pressure, vacuum and control functions. Start with the family, then validate the model.
0102Flow and pressure
Diaphragm water pumps
17 catalogue configurations
03Compact pneumatic output
Air pumps
14 catalogue configurations

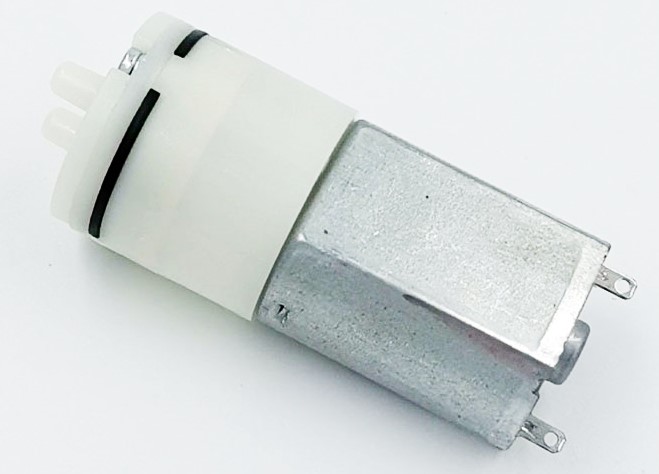

04Portable vacuum functions
Vacuum pumps
8 catalogue configurationsAlso available: gear liquid pumps, mini water pumps, leak-stop pumps, dual-media pumps and vacuum exhaust valves.
View the complete product centreRepresentative models
A practical starting point for model matching.
These models cover three common design routes: isolated dosing, pressurized liquid transfer and compact pneumatic output.

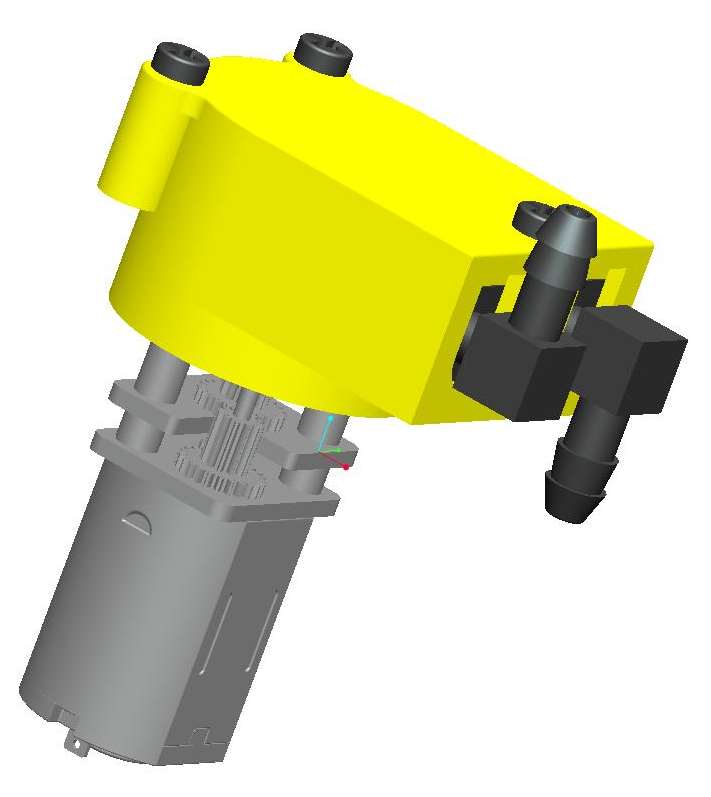

LiquidN20 micro peristaltic pump
HBSB-N20-XA
A compact low-volume peristaltic platform with an isolated tube path and four-way adjustable inlet and outlet orientation.
- Flow
- 0.5-15 mL/min
- Voltage
- 3-6 V DC
- Life test
- ≥200,000 cycles or ≥120 h

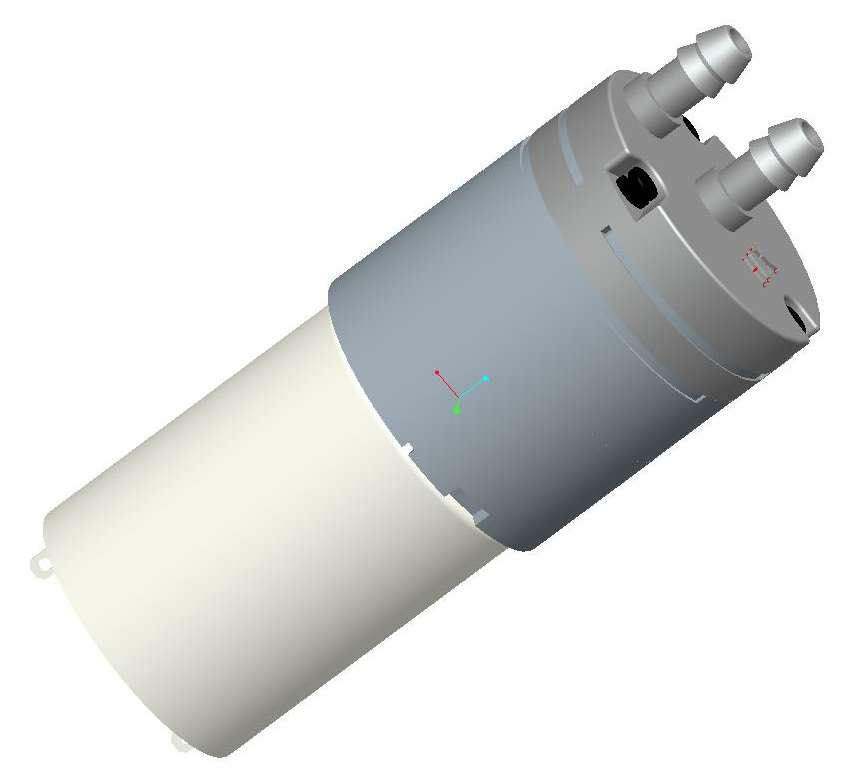

Liquid370B diaphragm water pump
HBSB-370-XB
A pressure-capable diaphragm water platform for oral care, spray products, and embedded liquid transfer.
- Flow
- 0.5-1.5 L/min
- Pressure
- ≥50 psi
- Voltage
- 3-24 V DC

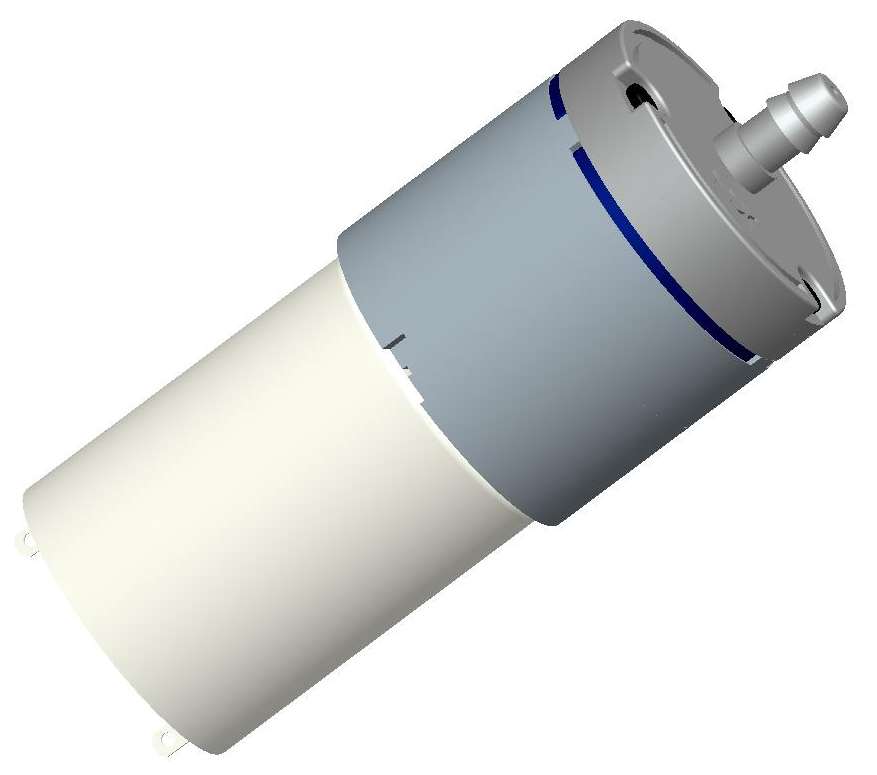

Air370A corrosion-resistant air pump
HBQB-370-XA
A POM air-pump platform for fragrance and compact pneumatic products where chemical resistance is important.
- No-load flow
- 0.5-2.5 L/min
- Pressure
- ≥90 kPa
- Life test
- ≥1,000 h
Application routes
The product you are building comes first.
A useful recommendation connects pump data to the complete circuit, enclosure, medium and operating profile.
Medical and personal care
Compact pump platforms for oral care, nasal irrigation, breast pumps, diagnostic concepts, and other embedded medical or personal-care equipment.
Working pressure or vacuum · Noise and pulsation · Duty cycle and validation requirementsBeauty and wellness equipment
Liquid, air, and vacuum platforms for skin-care, hair-care, massage, blackhead-removal, and beauty-device functions.
Formulation viscosity and compatibility · User-perceived noise · Handheld size and power budgetHome and cleaning appliances
Pump platforms for sweeping robots, electric mops, garment care, soap dispensing, washing equipment, and connected appliances.
Retained water and powered-off leakage · Debris and detergent exposure · Priming and installed orientationFragrance and aroma systems
POM air-pump options for fragrance machines and aroma diffusers exposed to essential-oil vapors.
Chemical concentration and temperature · Continuous operating hours · Electronic speed or PWM requirementsDispensing and viscous liquids
Peristaltic and gear-liquid options for sanitizer, detergent, shower gel, lotion, and other product formulations.
Viscosity at operating temperature · Dose repeatability or continuous flow · Tube and wetted-material compatibilitySpray and atomization
Water and air platforms for atomizers, oral care, nasal irrigation, disinfection spray, and beauty-spray products.
Nozzle diameter · Flow at working pressure · Spray force and pulsationOEM development
Four decisions from first brief to repeat supply.
The sample only becomes useful when its configuration, test focus and approval criteria stay connected to the production specification.
- 01
Define the duty point
Medium, flow at working pressure, voltage, duty cycle and installation space.
- 02
Compare platforms
Shortlist the pump technology and model family against the real circuit.
- 03
Validate samples
Check output, current, acoustics, temperature and life in your product.
- 04
Freeze the specification
Connect the approved sample to quotation, production and repeat supply.
Send these inputs:Medium and temperatureTarget flow at working pressurePressure or vacuumVoltage, current, and controlDuty cycle and lifetime targetTubing, ports, and installationSee the OEM process
Quality & validation
Evidence for the approved pump configuration.

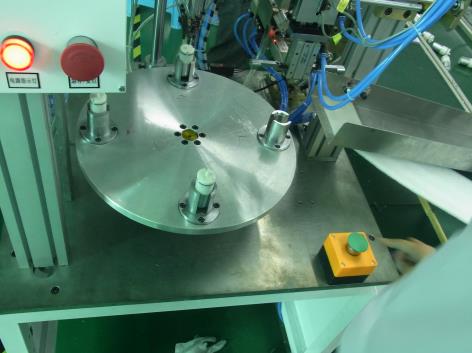

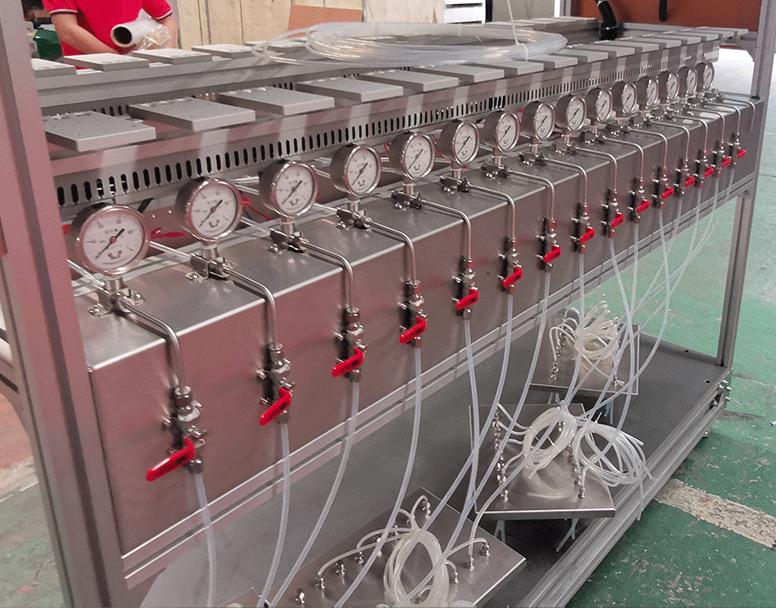

Performance screening, environmental evaluation, process control and project documentation help buyers move from sample approval to repeat supply with fewer hidden variables.
Review quality support
Start an OEM project
Tell us what the pump must do inside your product.A model shortlist starts with the medium, working flow, pressure or vacuum, voltage, duty cycle and annual volume.
